PRODUCT CODE : SF2247

Description:

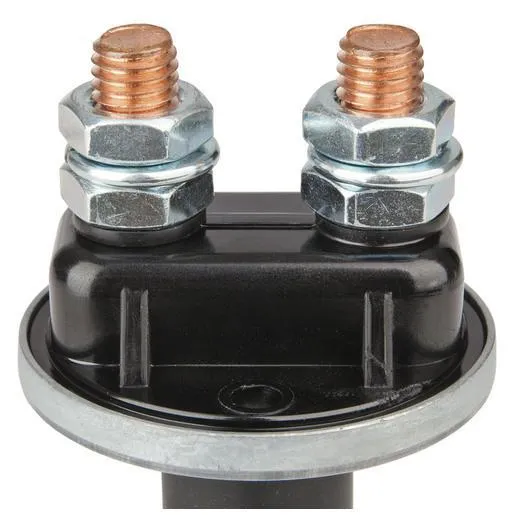

A high grade, high quality and very high current rated battery isolation switch for high power applications. Often fitted to boats, trucks, motor homes and other battery-based power systems to allow for quick and easy electrical isolation of the battery for protection against discharge, fire and other safety risks.

The switch handle features a tight and secure spring loaded actuation, locking the switch into the ON position and requiring you to pull the handle out to turn it off, avoiding accidental battery isolation. Features heavy gauge M12 brass bolt terminals, cast metal body for extra strength and durability, and is also supplied with a right angle mounting bracket. Perfect for marine, 4WD, caravan, motor home, truck and any other high current battery system.

Product Specifications:

• Continuous rating (6-48VDC): 500A

• Max rating (6-48VDC): 200A (10sec)

• Dimensions: 70mm(D) x 100mm(H)

• Packaged Volume: 0.52325l

• Packaged Weight: 0.52kg

• Packaged Length: 7cm

• Packaged Width: 6.5cm

• Packaged Height: 11.5cm

Warranty: 3 Months

Electrical Safety:

Some Electrical knowledge is assumed. If you are not familiar with DC high current circuits, you should not attempt to wire up any of these components. Employ a CEC certified off-grid solar installer to install these products for you. Energy Connections takes no responsibility for damage caused to equipment or persons as a result of improper installation with these or any devices sold by us.
