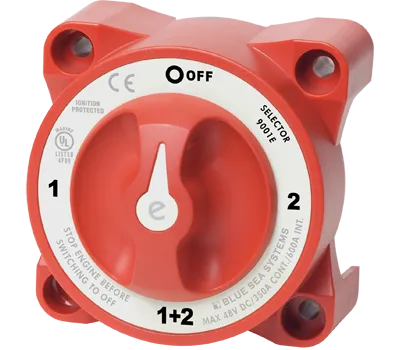

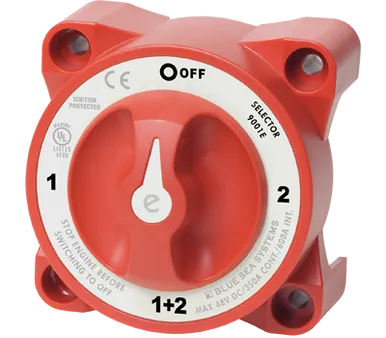

The Blue Sea Systems 9001e battery switch is rated at 350 amps continuous, for gasoline and diesel environments.
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected: safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
Specifications:
| Model Number: | 9001E |
| Cranking Rating: 10 sec. | 2,000 Amps |
| Cranking Rating: 1 min. | 1,000 Amps |
| Intermittent Rating: 5 min. | 600 Amps |
| Continuous Rating | 350 Amps |
| Maximum Voltage Rating | 32 Volts DC |
| Terminal Stud Size | 3/8"-16 (M10) |
| Terminal Stud Torque | 140 in-lb (15.82 N ·m) max. |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Cable Size to Meet Ratings | 4/0 AWG (120mm ²) |
| Cable Clearance For 4/0 AWG Cables | 1.10" (27.9mm) |
| Weight Lb (Kg) | 1.15 (0.52) |
